SPECIFICATIONS

ANDONSTAR Model: AD409PRO-ES

Battery Included: No

Brand Name: ANDONSTAR

Certification: CE,FCC,RoHS

Drawtube: Monocular

Features: High Definition,Portable,Digital

High-concerned chemical: None

Imaging sensor: 4 mega pixels high definition sensor

Is Smart Device: Yes

Magnification Ratio: 500X & Under

Magnification ratio: 300X

Material: Metal,Metal+ABS

Model Number: AD409PRO-ES

Origin: Mainland China

PC support: Yes

Screen size: 10.1 inch

Semi-finishedproduct: No

Theory: Video Microscope

WIFI: Yes

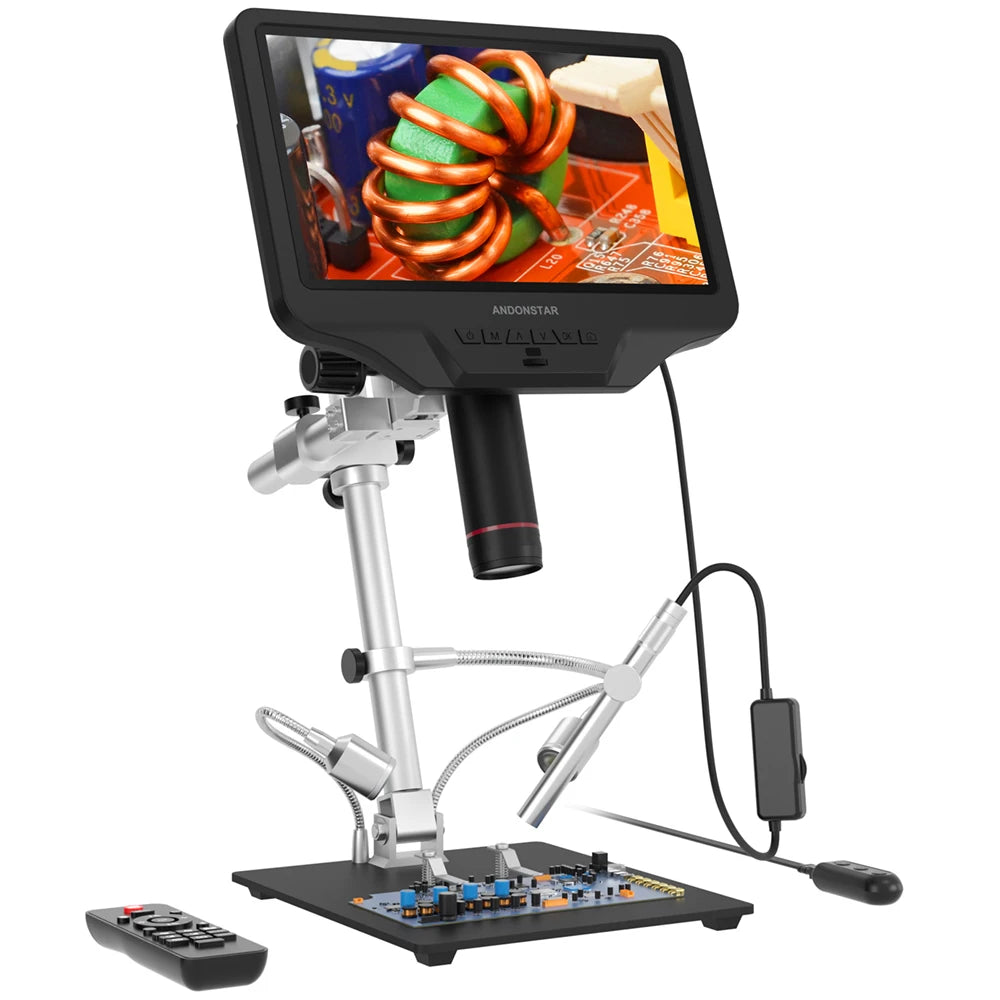

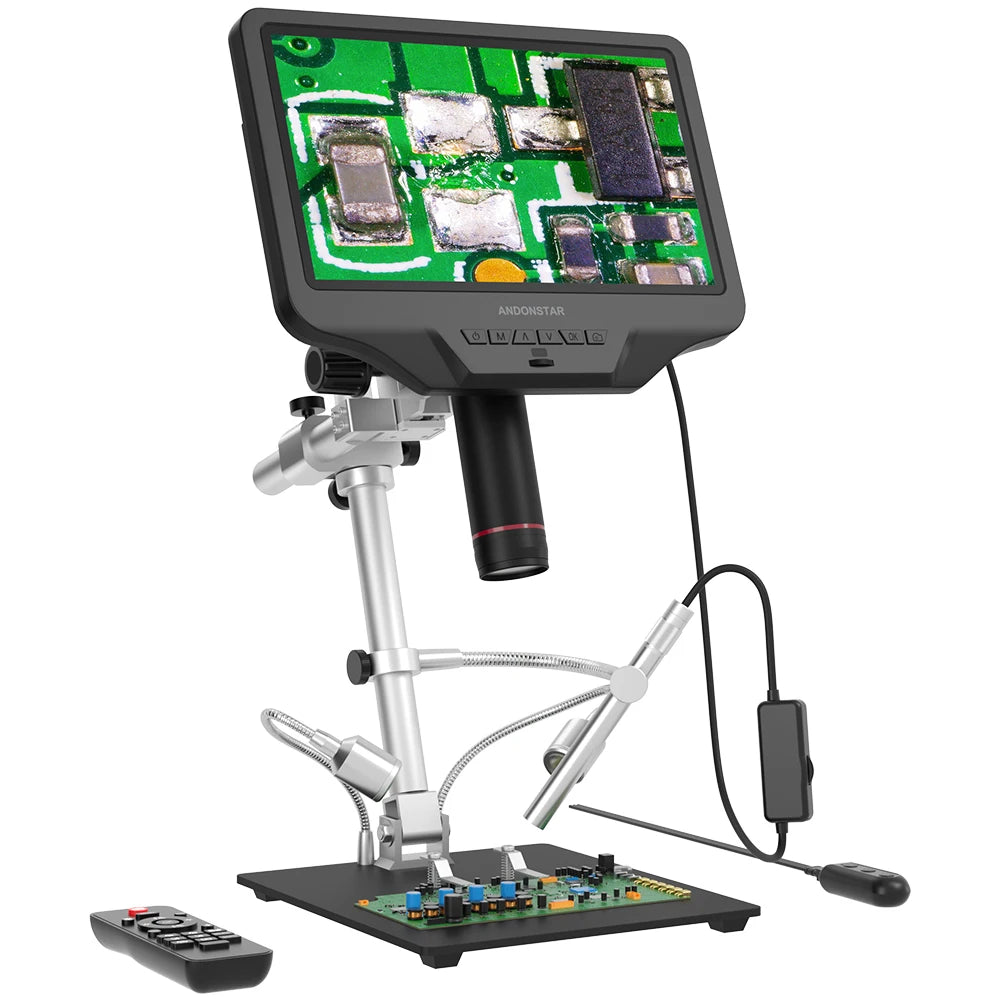

Andonstar AD409PRO-ES with Endoscope 10.1 inch WIFI HDMI/USB Digital Microscope for Soldering PCB/SMD Electronics Phone Repair Tools

Features

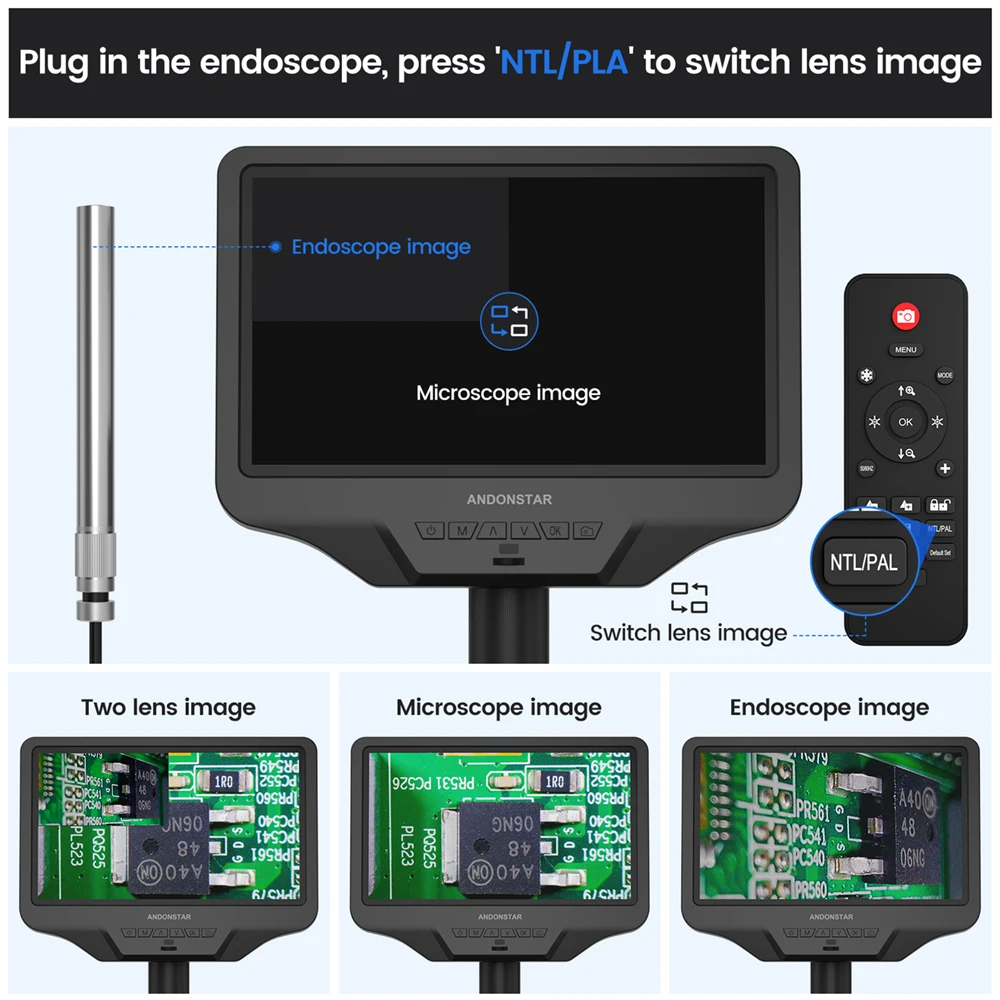

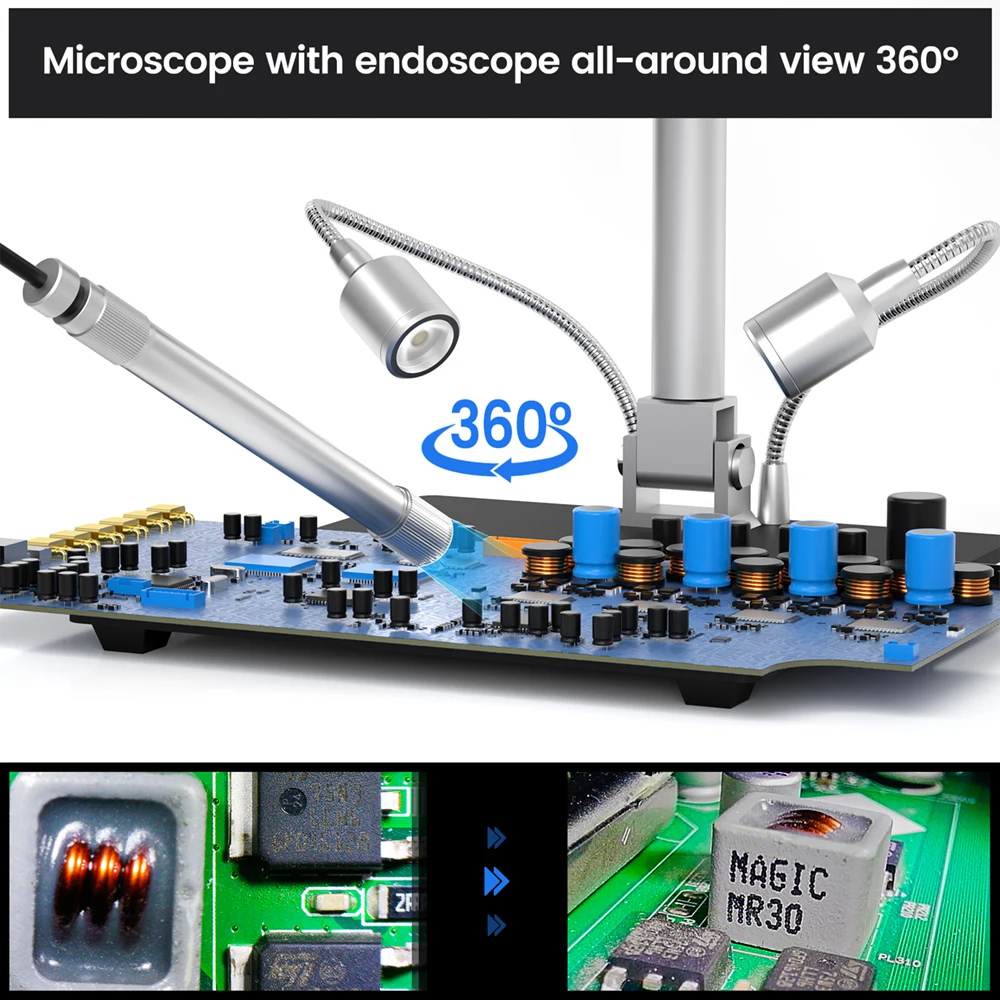

Microscope with Endoscope all-around view 360°:quipped with a microscope for clear observation of the sides of components, the inside of pipes, etc.,enabling 360° observation without dead angles.

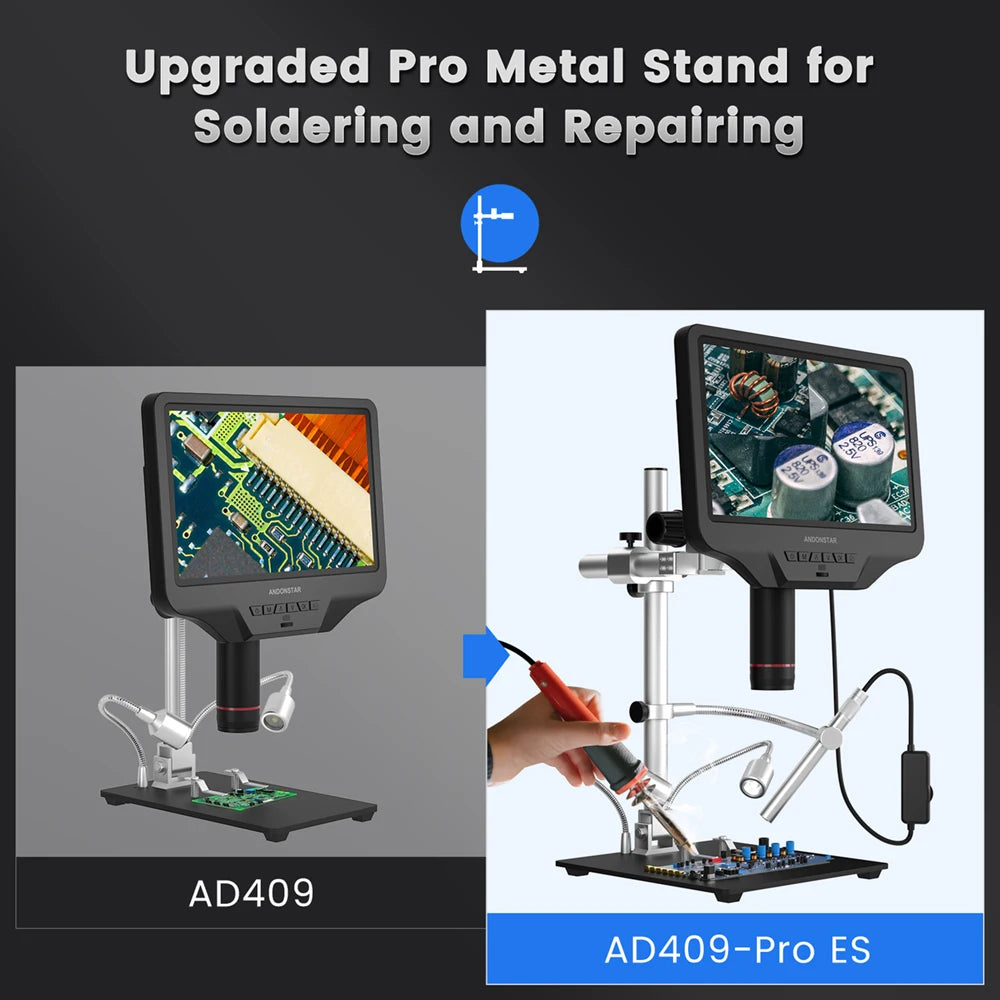

Soldering Microscope with Pro Metal Stand:Equipped with Andonstar's newest upgraded Pro bracket (size:7*7.8*13inch), the angle of the bracket is adjustable front and rear, and it can be rotated 360° horizontally. The larger metal base plate and the higher working distance can meet your needs for repairing larger circuit boards.

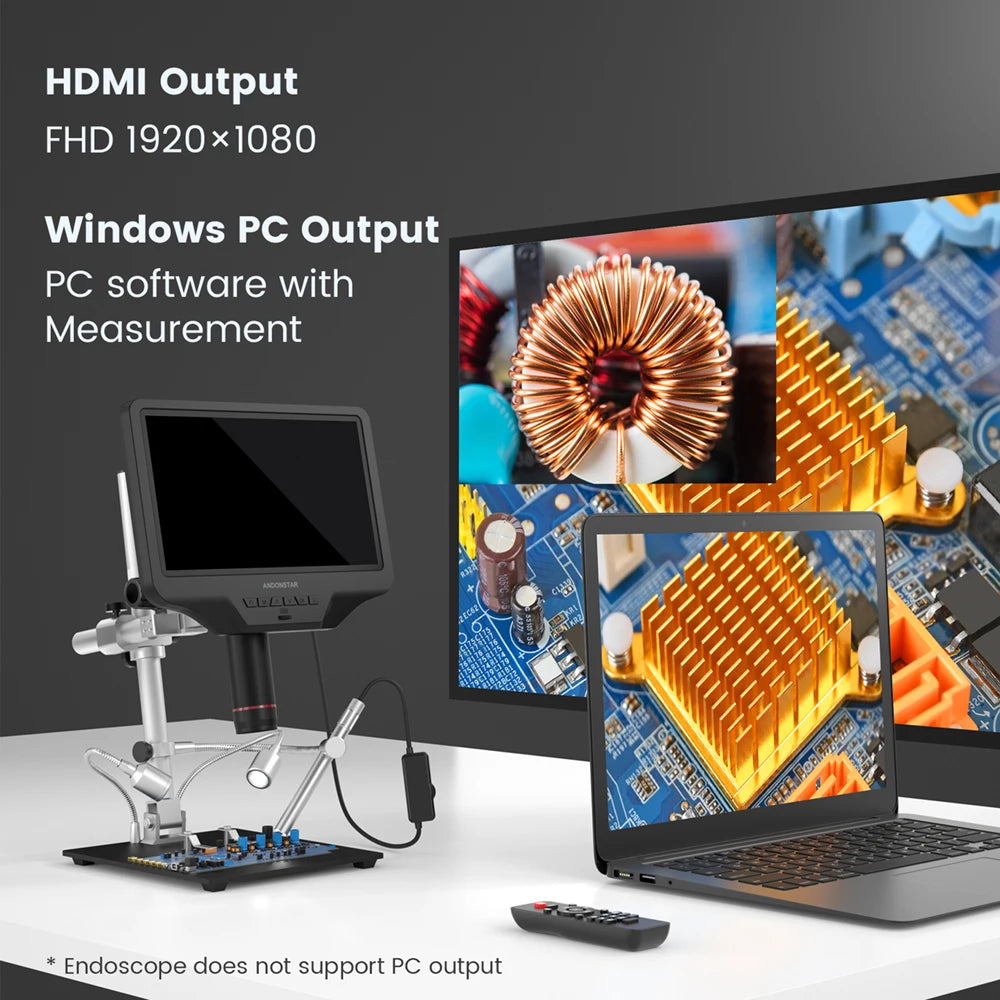

HDMI digital microscope supports multiple output methods:UHD 2160P Video Record,10.1 inch IPS screen while supporting HDMI output,Professional digital microscope Supports multiple output methods：HDMI output, PC output (endoscope not supported),WIFI output.

10.1 inch display:10.1 inch display brings you perfect visual experience. For most people, no more external display is needed, the microscope itself can meet all their visual demands.

1080P and 60f:industrial optical lens and 4MP sensor together provide magnification that up to 270 times and video recording resolution up to 1080P and 60f.The microscope boots fast and has much less latency. 60 frame per second allows it to capture all your move under the lens.

3D effect:fine depth of field, real 3D visual effect.

Upgraded stand:foldable bracket provides a much bigger working space.

Adjustable monitor:adjustable monitor, suiting ergonomic design, can protect your eyes and neck from long desk hours.

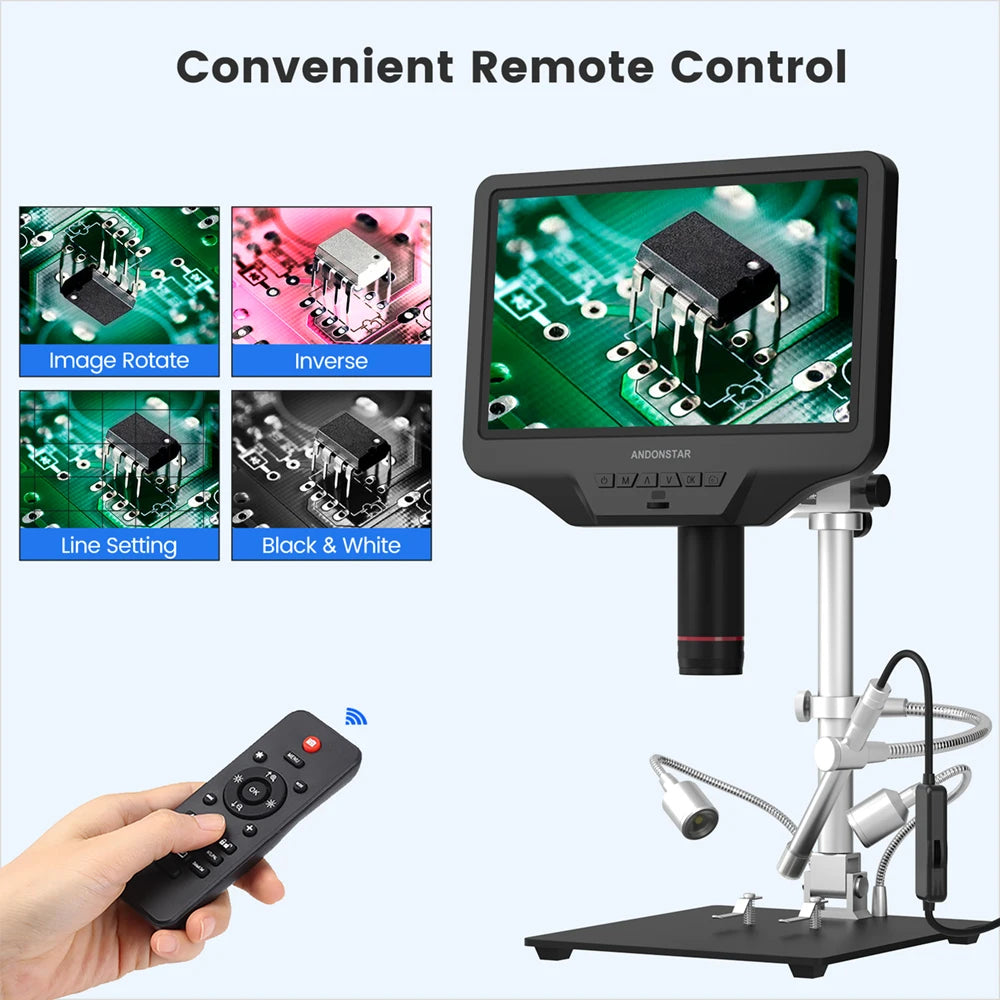

Other expansion functions:timelapse record, gridlines, UV filter, imaging, video, IR remote, screen freeze, meet demands of people that are from different fields.

Specifications

Screen size:10.1 inch

Material:Metal+ABS

Color:Black

Imaging sensor:4 mega pixels high definition sensor

Video output:UH-D 2880*2160 24FPS; FH-D 1920*1080 60FPS/30FPS, H-D 1280*720 120FPS

Video format:MP4

Magnification ratio:up to 300X (high-definition multimedia interface monitor 27 inch)

Photo resolution:Max.4032*3024 (12M 4032*3024)

Photo format:JPG

Minimum focus distance:50mm

Frame rate:Max.120f/s (under 600 lux brightness&H-DP120)

Storage:Micro-SD card,up to 64G (not included)

PC support:Yes

Power source:5V DC

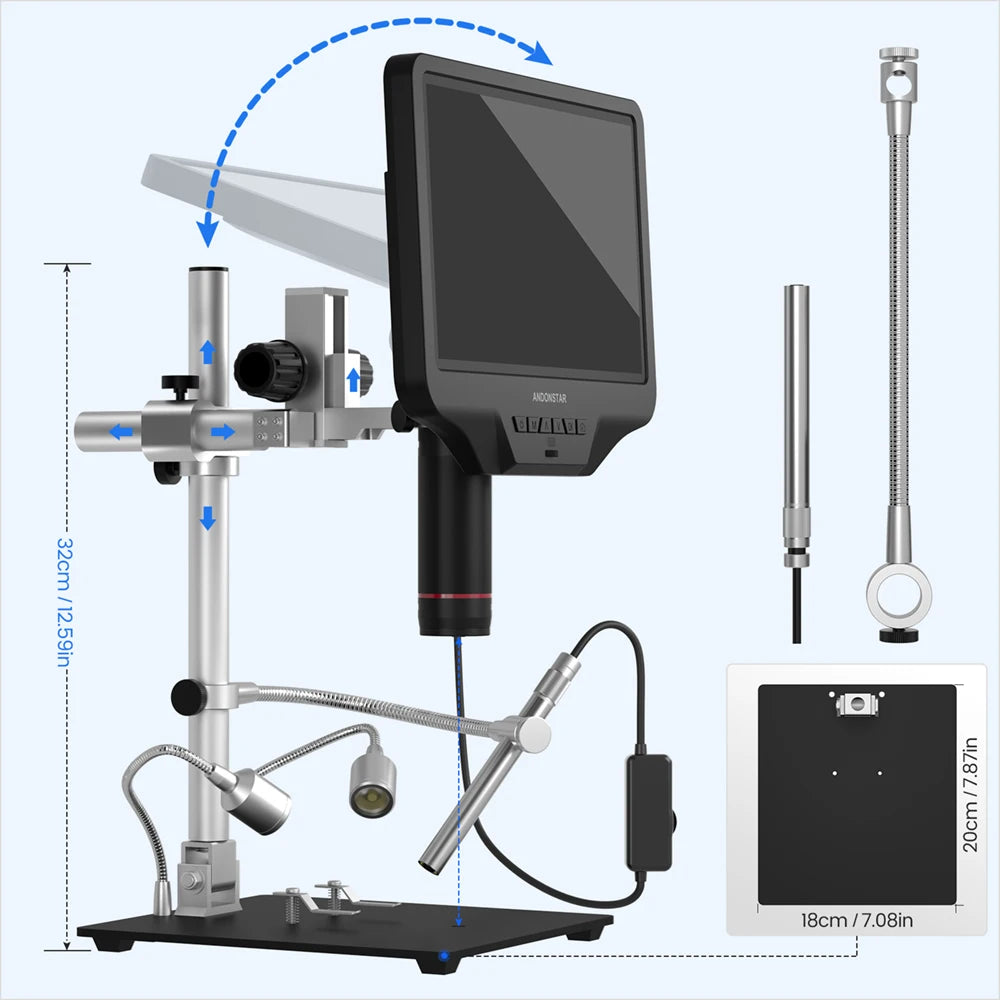

Stand size:20cm*18cm*33cm

Remote control battery:2*AAA battery (not included)

Package size:30*15*26cm

Package weight:2.5kg

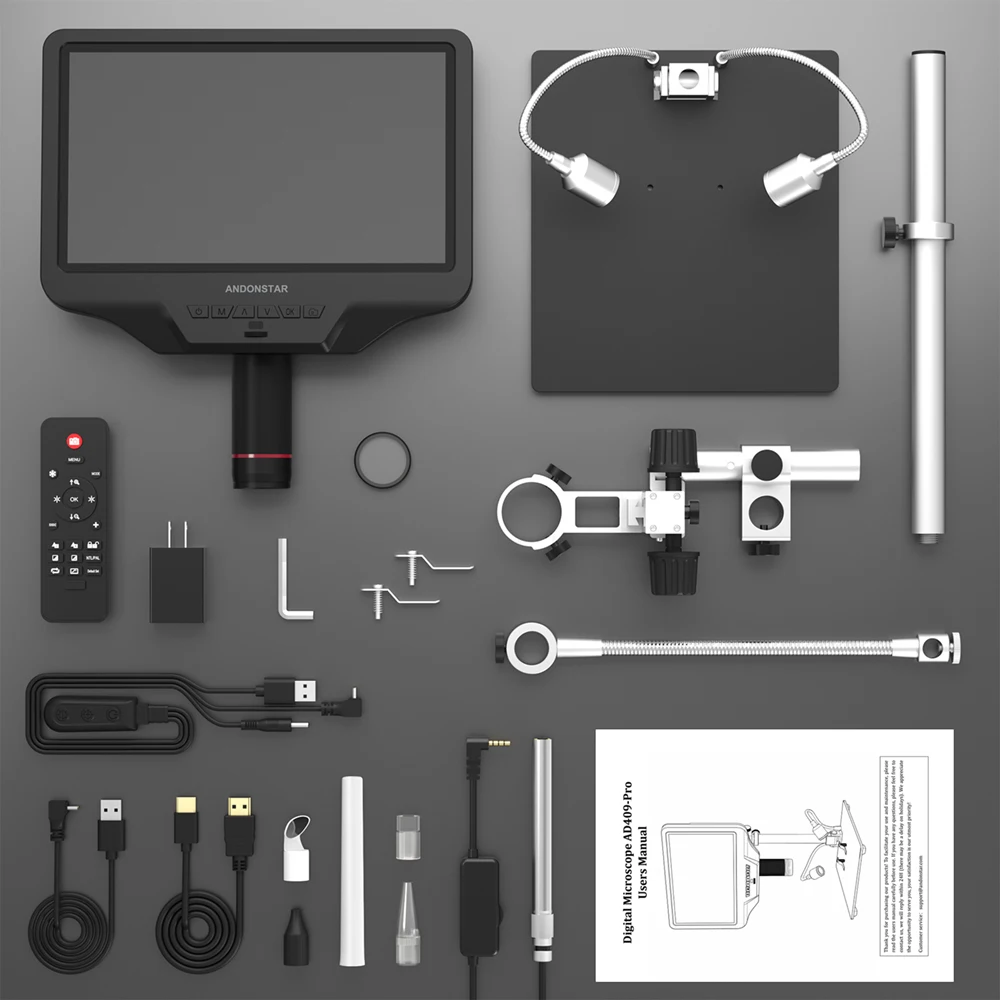

AD409PRO-ES Package list:

1 * Microscope

1 * Metal Base

1 * Optical Bracket

1 * Metal Column

1 * Power Adapter

1 * Switch Cable

1 * USB cable

1 * HDMI Cable

1 * Remote Control

1 * UV Filter(has been assembled in front of the lens)

1 * Wrench

1 * Metal clips

1 * User Manual

1 * Endoscope

5 * Plastic accessory
