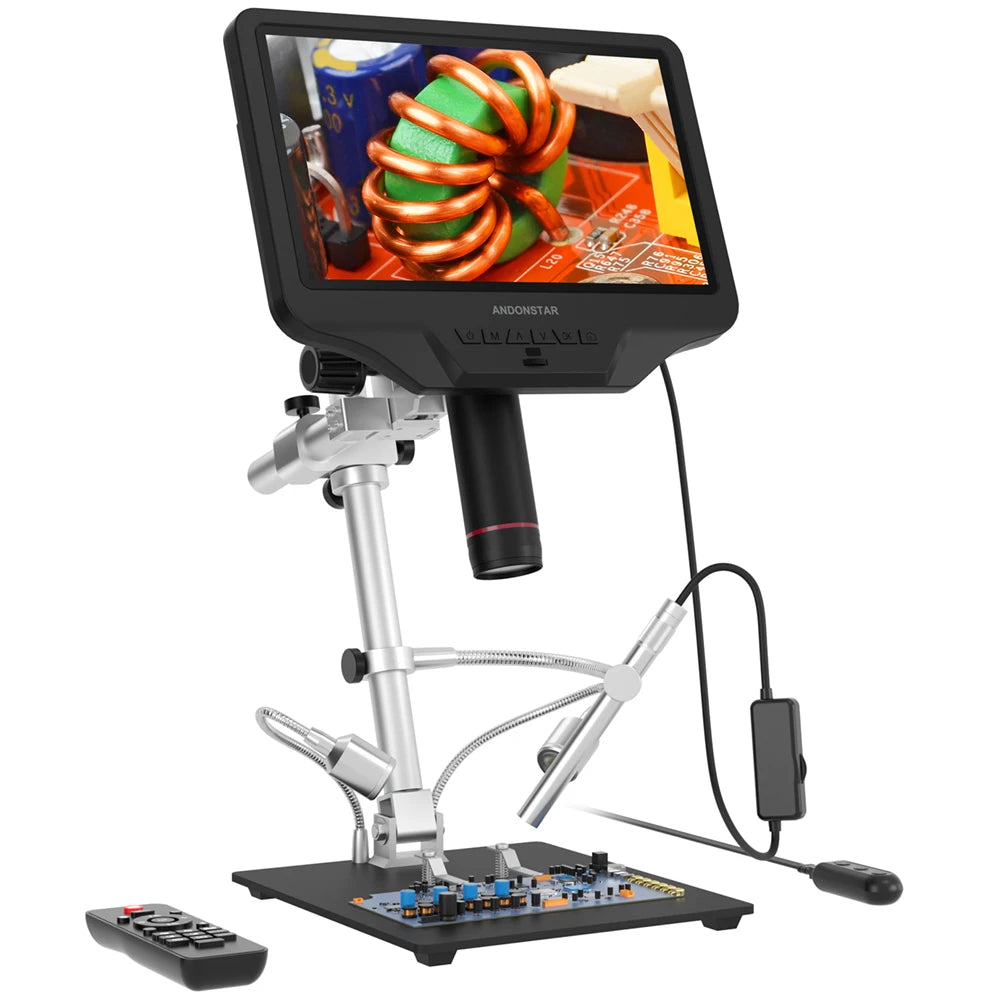

Andonstar AD409PRO-ES with Endoscope 10.1'' WIFI HDMI/USB Digital Microscope for PCB Soldering Phone Watch Electronics Repair
SPECIFICATIONS
ANDONSTAR Model: AD409PRO-ES
Battery Included: No
Brand Name: ANDONSTAR
Certification: CE,FCC,RoHS
Color: Black
Drawtube: Monocular
Features: High Definition,Portable,Digital
High-concerned chemical: None
Imaging sensor: 4 mega pixels high definition sensor
Is Smart Device: Yes
Magnification: 300X
Magnification Ratio: 500X & Under
Material: Metal,Metal+ABS
Model Number: AD409 Pro+Endoscope
Origin: Mainland China
PC support: Yes
Photo format: JPG
Photo resolution: Max. 4032*3024(12M 4032*3024)
Screen size: 10.1 inch
Semi-finishedproduct: No
Stand size: 20cm*18cm*33cm
Theory: Video Microscope
Video format: MP4
Andonstar AD409 Pro with Endoscope 10.1 Inch WIFI HDMI/USB 300X Digital Microscope for Soldering PCB/SMD Electronics watch Phone Repair Tools
Features

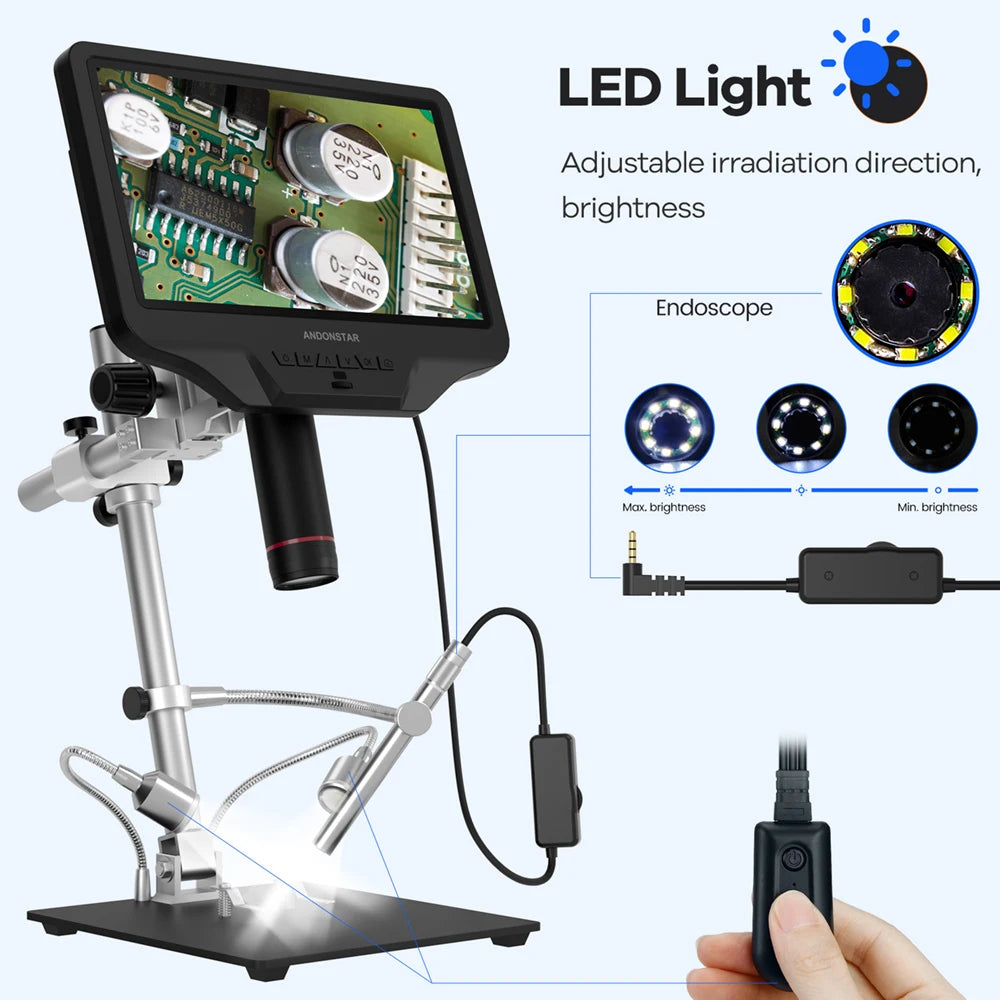

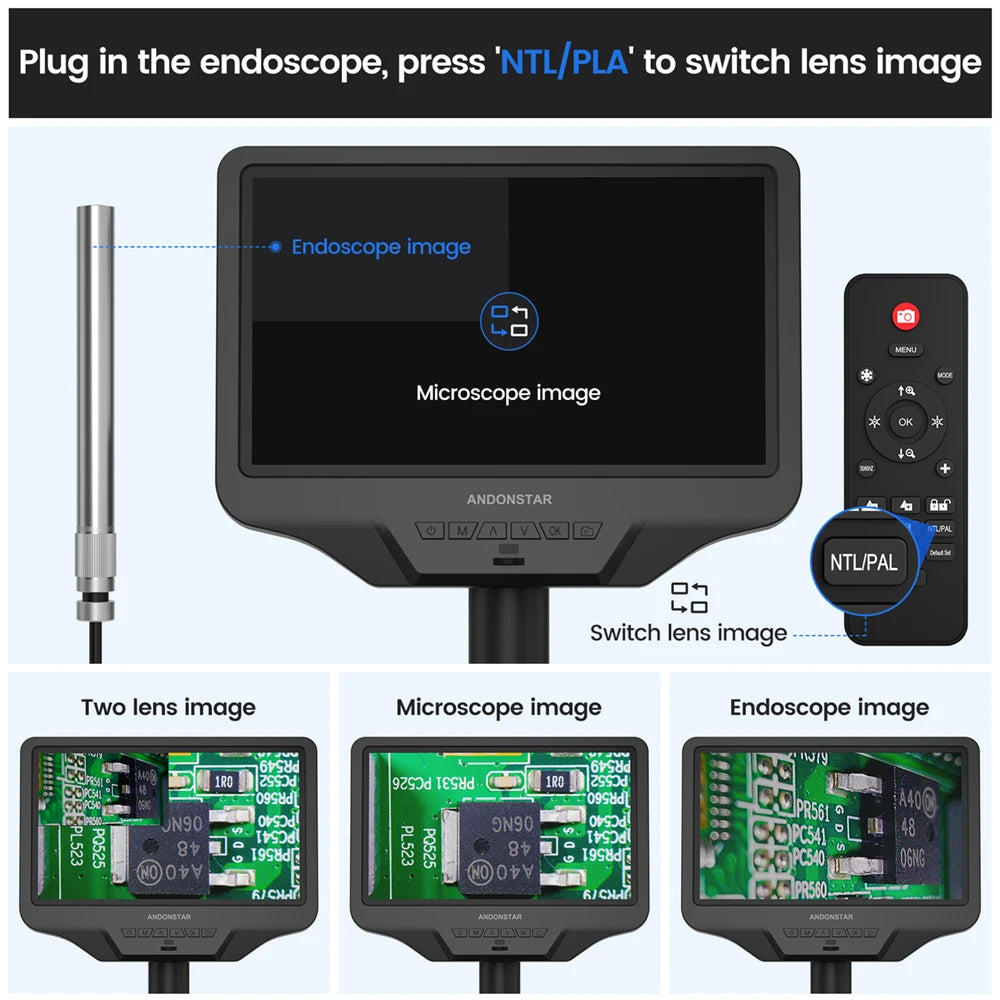

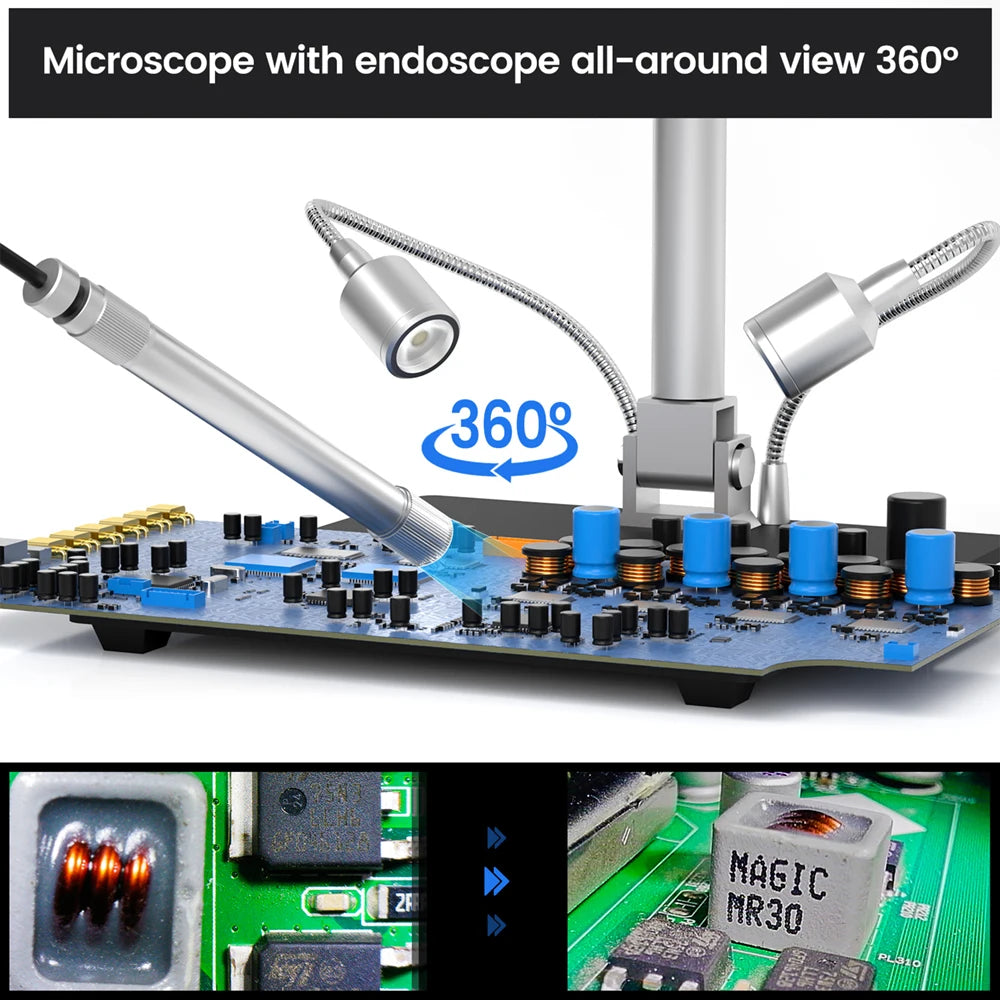

Microscope with Endoscope all-around view 360°:quipped with a microscope for clear observation of the sides of components, the inside of pipes, etc., enabling 360° observation without dead angles.

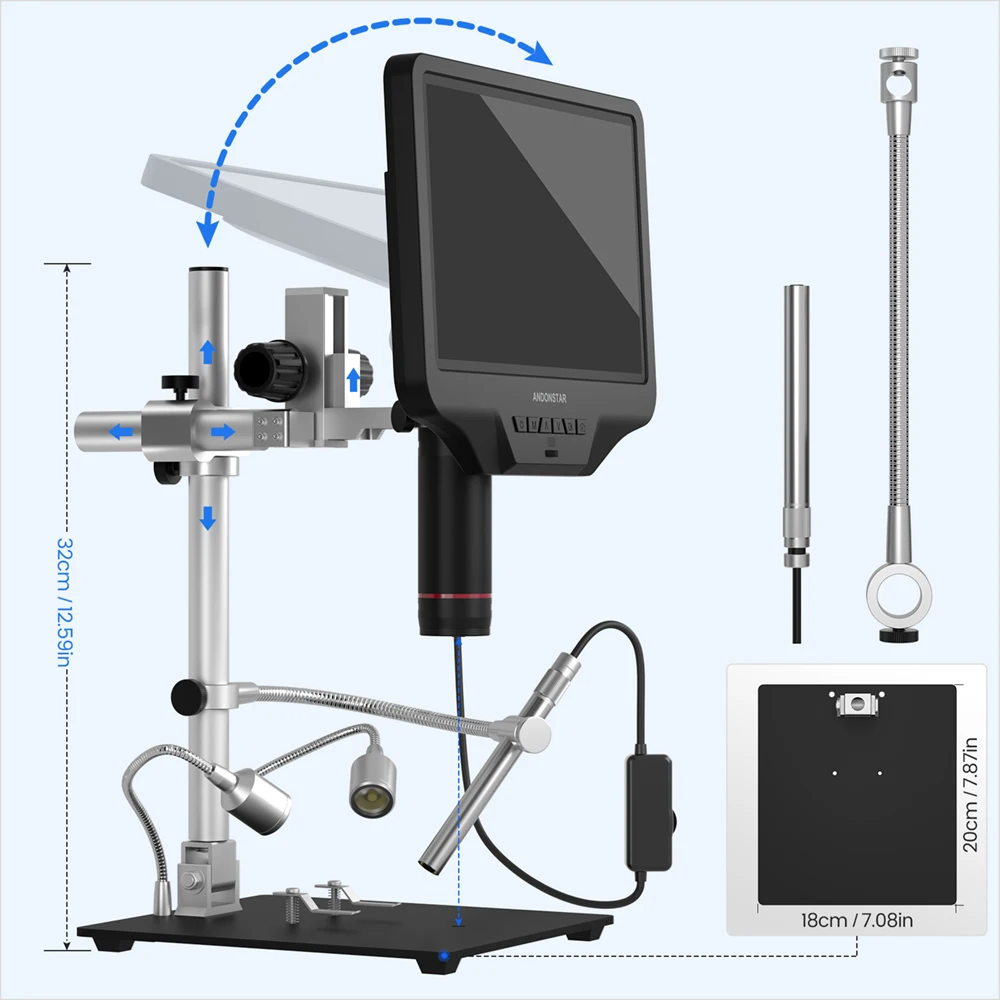

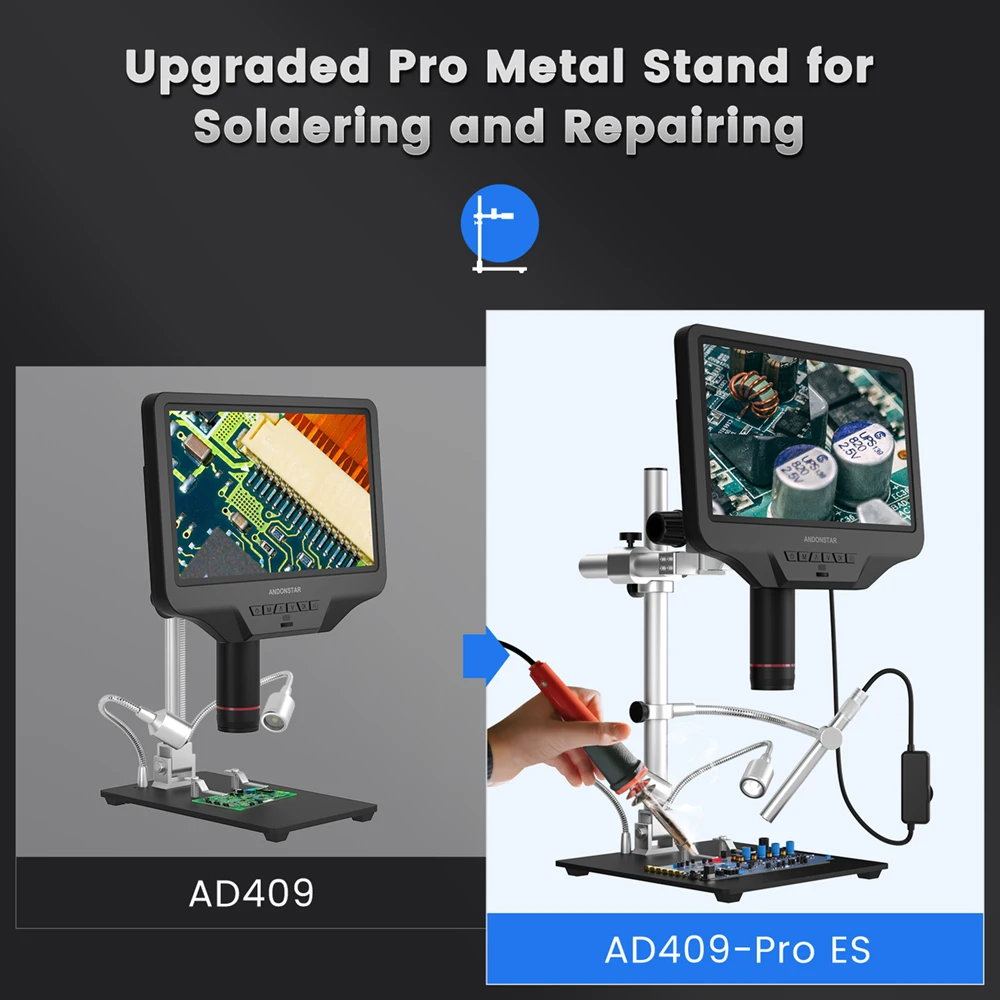

Soldering Microscope with Pro Metal Stand:Equipped with Andonstar's newest upgraded Pro bracket (size: 7*7.8*13inch), the angle of the bracket is adjustable front and rear, and it can be rotated 360° horizontally. The larger metal base plate and the higher working distance can meet your needs for repairing larger circuit boards.
10.1 inch display: 10.1 inch display brings you perfect visual experience. For most people, no more external display is needed, the microscope itself can meet all their visual demands.
1080P and 60f: industrial optical lens and 4MP sensor together provide magnification that up to 270 times and video recording resolution up to 1080P and 60f. The microscope boots fast and has much less latency. 60 frame per second allows it to capture all your move under the lens.
3D effect: fine depth of field, real 3D visual effect.
Upgraded stand: foldable bracket provides a much bigger working space.
Adjustable monitor: adjustable monitor, suiting ergonomic design, can protect your eyes and neck from long desk hours.

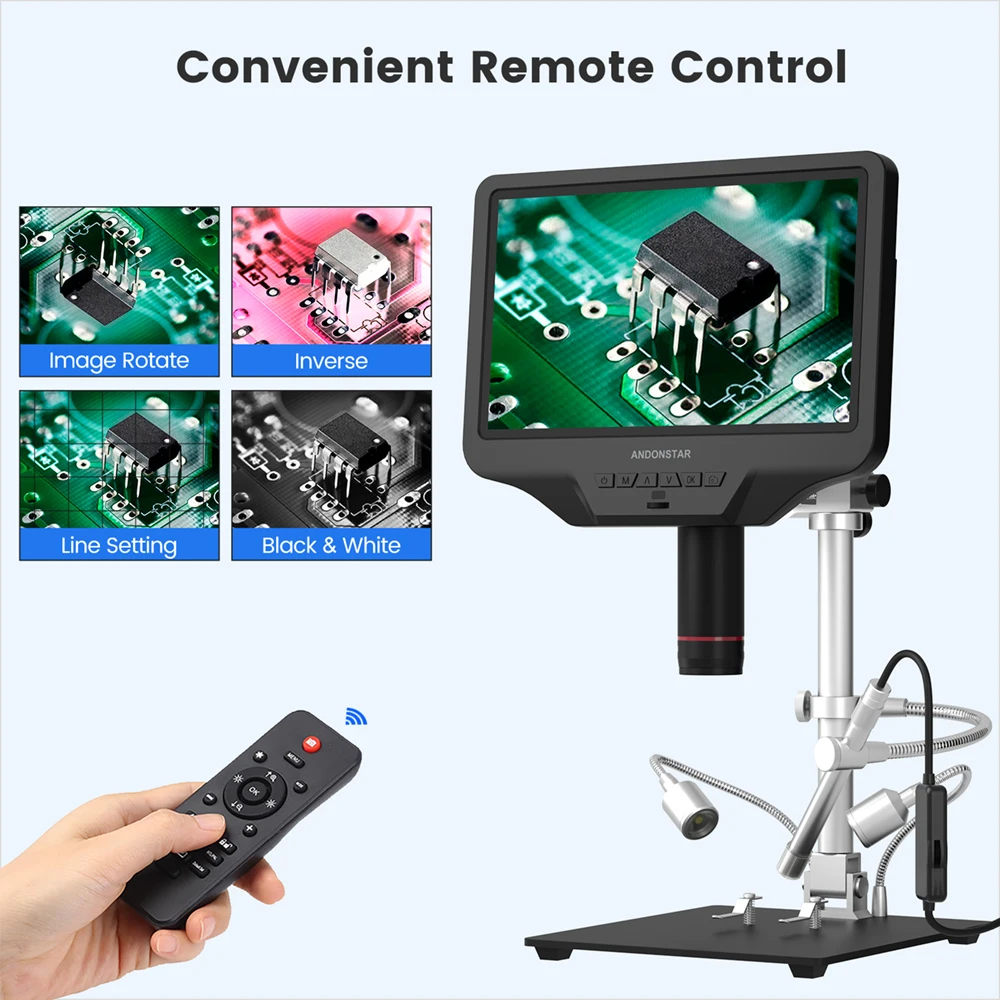

Other expansion functions: timelapse record, gridlines, UV filter, imaging, video, IR remote, screen freeze, meet demands of people that are from different fields.
Specifications
Material:Metal+ABS
Color:Black
Imaging sensor:4 mega pixels high definition sensor
Video output:UH-D 2880*2160 24FPS; FH-D 1920*1080 60FPS/30FPS, H-D 1280*720 120FPS
Video format:MP4
Magnification ratio:up to 300X (high-definition multimedia interface monitor 27 inch)
Photo resolution:Max. 4032*3024 (12M 4032*3024)
Photo format:JPG
Minimum focus distance:50mm
Frame rate:Max.120f/s (under 600 lux brightness&H-DP120)
Storage:Micro-SD card, up to 64G (not included)

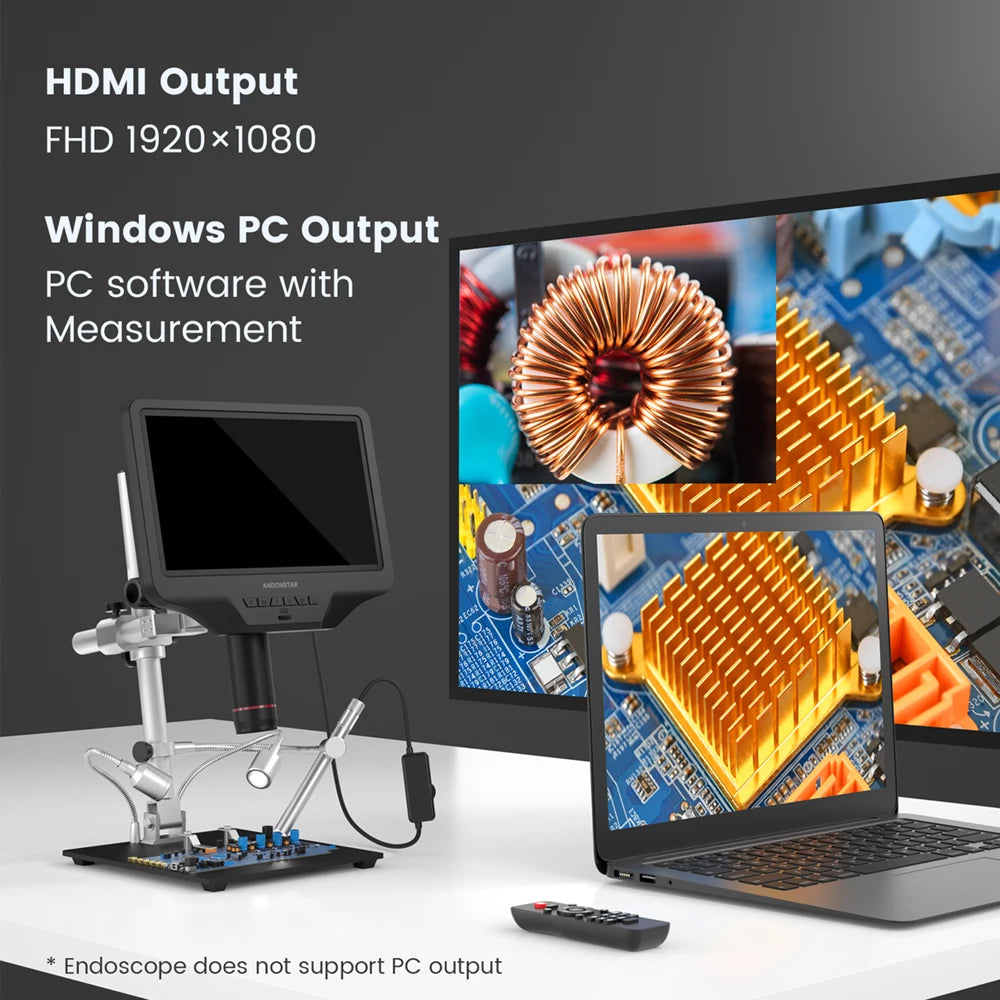

PC support:Yes
Power source:5V DC
Stand size:20cm*18cm*33cm
Screen size:10.1 inch
Remote control battery:2 * AAA battery (not included)
Package size:30*15*26cm
Package weight: 2.5kg

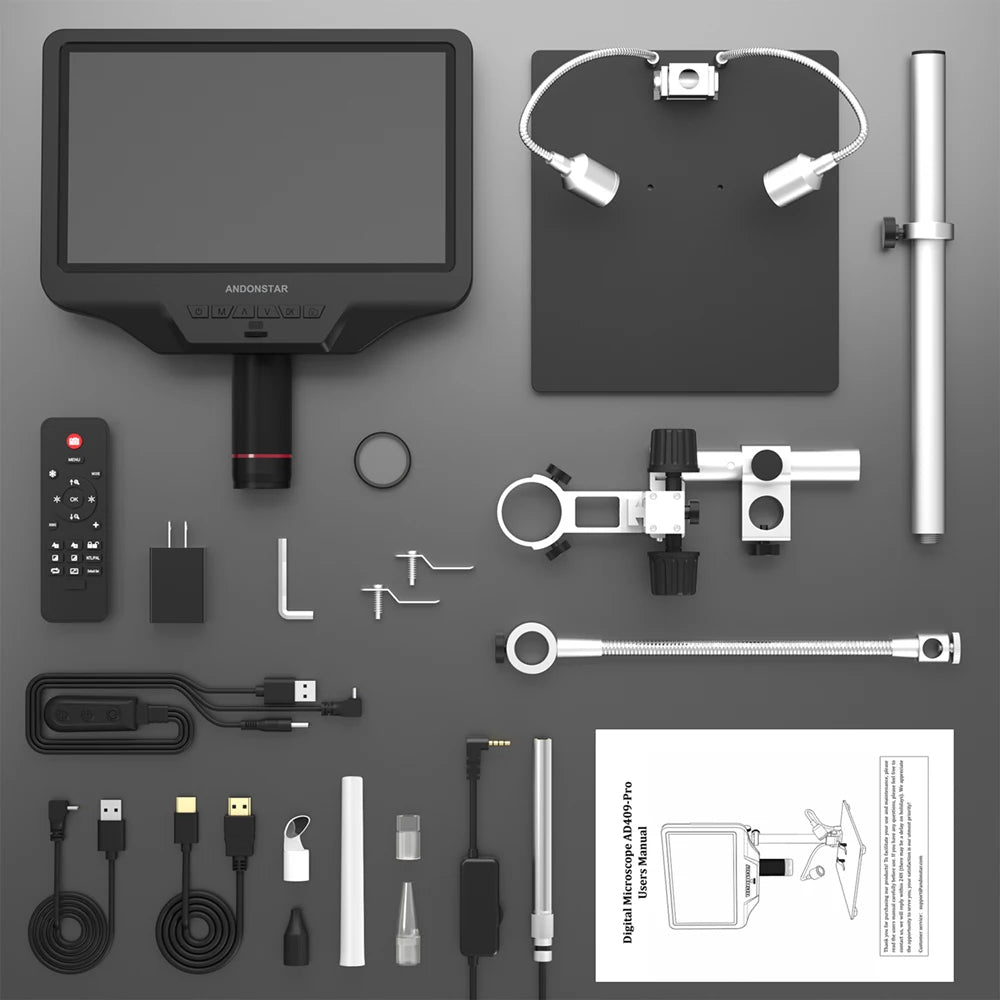

AD409PRO-ES Package list:
1 * Microscope
1 * Endoscope
1 * Metal Base
1 * Optical Bracket
1 * Metal Column
1 * Power Adapter
1 * Switch Cable
1 * USB cable
1 * HDMI Cable
1 * Remote Control
1 * UV Filter(has been assembled in front of the lens)
2 * Screw
1 * Wrench
1 * Metal clips
5* Plastic accessory
1 * User Manual
